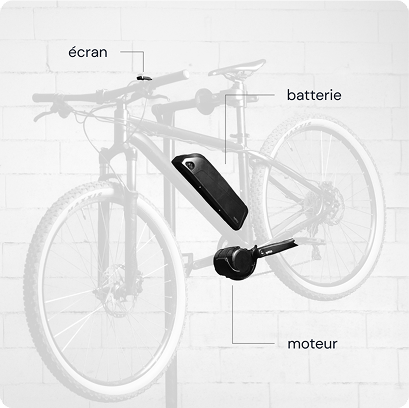

TDSZ8 crankset motor
Powerful, responsive assistance with advanced torque sensor.
Pro screen
Clear display with all essential information in real time.
Battery
Compact, removable battery for easy recharging.
Crank
Replaces original cranks for optimum engine compatibility.
Battery holder
Stand with integrated controller for clean, efficient installation.
Speed sensor, screws and tools
Speed sensor, screws and tools for secure mounting.
Charger
2A charger for optimum autonomy.
Instruction manual
Detailed guide for easy installation and commissioning.
Tame any terrain with the PowerTrail Z8!
You’re looking for power and sturdiness ? With the PowerTrail Z8, you can transform your bike into an all-terrain machine, perfect for the most demanding adventures, with or without a load.
⚙️ Unrivalled power for all your outings
TSDZ8 pedal motor delivers an impressive 110 Nm of torque and up to 860W of power . Whether you’re on a steep trail or in the middle of a climb, this engine provides powerful, responsive support. Sound advanced torque sensor adapts assistance to your pedaling for a smooth, seamless riding experience.
Although capable of delivering high power peaks, the PowerTrail Z8 complies with the EN 15194 (VAE) standard by maintaining a nominal power rating of 250W, making it perfectly authorized for use on public roads.
🔋 Choose your autonomy according to your needs
The PowerTrail Z8 is compatible with two types of battery for long distances and demanding terrain:
- Wedge 480 Wh battery: an excellent compromise between autonomy and lightness (up to 60 km range).
- Hailong 720 Wh battery: maximum capacity for extended adventures (up to 130 km or more, depending on terrain).
📊 Intelligent display for total control
L’Le Dispaly Syklo gives you all the essential information at a glance: speed, assistance level, remaining range… Its size Its ultra-compact size (23 mm wide) makes it a discreet ally that won’t overload your handlebars.
🛠️ Installation and compatibility
✔ Fits most bikes with square-axle bottom bracket (68-73 mm).
✔ Fast installation, even for mechanics.
✔ Complies with European standards EN 15194 – Assistance limited to 25 km/h.
✔ Compatible with Pressfit housings thanks to thePressfit Syklo adapter.
⚠️ Beware of incompatibilities
This kit is not compatible with :
- Belt drive systems
- Back-pedal brake systems.
- Carbon frames (compatible with our RoadDrive 45).
🔗 Need another type of motorization? Discover the UrbanExplorer Z2 for versatile use, and the RoadDrive 45 for lighter assistance!
Give your bike a new lease of life with the UrbanExplorer Z2!
Do you enjoy your bike but want to give it more power to go further, faster and without too much effort? The UrbanExplorer Z2 is the perfect choice for converting your bike into an electric model. high-performance and responsive ideal for urban commuting on flat or hilly roads.
⚙️ A central motor for natural assistance
The TSDZ2B pedal motor gives you a powerful torque of 80 Nmideal for climbing hills without breaking a sweat. Thanks to its advanced torque sensor, the assistance system adapts in real time to your pedaling for a smooth, natural riding experience. No jerks, just an amplified pedaling sensation, as if you’d always had the legs of a pro!
Easy installation : fits most bikes with square-axle bottom brackets square-axle bottom bracket (68 to 73 mm). And with its 3.5 kgit remains discreet and well integrated into your frame.
🔋 Choose the autonomy that’s right for you
Because every cyclist has different needs, three battery options are available:
- 250 Wh Bottle Battery Ultra-compact and lightweight (1.5 kg), perfect for short city trips (30 to 50 km range).
- Wedge 360 Wh battery An excellent compromise between range and weight (up to 60 km), ideal for everyday use.
- Hailong 630 Wh battery For long-distance cycling and touring (90 to 130 km), without fear of running out of energy.
📊 Intelligent display for total control
The Dsipaly Syklo gives you all the essential information at a glance: speed, assistance level, remaining range… Its size ultra-compact (23 mm wide) makes it a discreet ally that won’t overload your handlebars.
🛠️ Installation and compatibility
✔ Fits most bicycles with square-axle bottom bracket (68-73 mm).
✔ Quick installation, even if you’re not a mechanical expert.
✔ Complies with European standards EN 15194 – Assistance limited to 25 km/h.
✔ Compatible with Pressfit housings with thePressfit Syklo adapter.
⚠️ Beware of incompatibilities
This kit is incompatible with :
- Belt drive systems
- Back-pedal brake systems.
- Carbon frames (compatible with our RoadDrive 45).
🔗 Not sure which model to choose? Discover the PowerTrail Z8 for more power, or the RoadDrive 45 for light, fluid assistance!
⚙️ MOTOR
| Features | Detail |
| Motor type | Pedal motor |
| Position | Central crankset |
| Weight | 4.6 kg |
| Rated power | 250W |
| Maximum power | 850W peak |
| Maximum torque | 110 Nm |
| Technology | Brushless |
| Sensor type | High-precision axial torque transducer |
| Rated voltage | 48V |
| Maximum assistance speed | 25 km/h (in compliance with VAE EN 15194 standard) Password-protected max speed setting |
| Assistance mode | Automatic assistance adjustable from 200 to 400%. |
| Battery connection | XT60 waterproof plug (XT60W black) |
| Platform | 44T steel (42T aluminum narrow wide available) |
| Protection class | IP54 |
| Crankset compatibility | 68-73 mm square axle (Pressfit adapter available) |
| Bike compatibility | Mountain bikes, mountain bikes, recumbents, trikes, city bikes, gravel bikes, road bikes, cargo bikes, atypical bikes, … |
🔋 BATTERIES
| Features | Wedge 480Wh | Hailong 720Wh |
| Dimensions | 276 × 112 × 95 mm (with stand) | 362 × 109.4 × 90.3 mm (with stand) |
| Weight | 3.0 kg | 3.1 kg |
| Battery type | Lithium-Ion (Samsung cells) | Lithium-Ion (Samsung cells) |
| Capacity | 480Wh (10Ah – 48V) | 720Wh (17.5Ah – 48V) |
| Max. discharge current | 30A | 30A |
| Communicating BMS | YES (with dedicated application) | YES (with dedicated application) |
| Estimated range | 40 to 60 km | 90 to 130 km |
| Protection class | IP64 (water and dust resistant) | IP64 (water and dust resistant) |
| Charging time |
Standard charge 5h |
Fast charge 7.5h (standard) 3h (optional) |
| Discharge connector | XT60 | XT60 |
| Bluetooth | YES (Syklo App) | YES (Syklo App) |
| Safety | Charge indicator, key lock | Load indicator, key lock |
| Mounting | Downtube mounting | Rail-mounted for sturdy attachment |
📊 Display Syklo
| Features | Detail |
| Display type | Compact monochrome LCD |
| Dimensions | 63 x 23 mm |
| Display | Battery level, speed, distance, assistance mode |
| Assistance levels | 5 levels + walk mode (5 km/h) |
| Connectivity | Compatible with Syklo firmware |
| Lighting | Lights on/off via display |
| Protection class | IP65 (water and dust resistant) |
| Handlebar compatibility | Ø 22.2 mm (adapter available for road handlebars) |
| Bluetooth | YES |
🔧 MISCELLANEOUS
| Features | Detail |
| Total kit weight | 7.7 kg |
| Standard | Complies with EN 15194 (VAE) |
| Installation | Quick installation in 120 min (manual included) |
| Warranty | 2 years |
How does it work?
Install the kit
In around 2 hours, you can easily assemble your pedal motor electrification kit! No need to be a mechanical expert: just follow our detailed guide.
Drive, you're electrified
Thanks to its integrated torque sensor, the kit gives you smooth, natural assistance, whatever your bike (VTC, MTB or cargo bike). You'll immediately feel the difference: more results, less effort.
One screen, 12 functions
Take advantage of a compact, intuitive screen to monitor and control your data in real time.
Track your performance
With the Syklo app, you can track your performance and adjust your settings to optimize every ride and extend the life of your battery.
1000 W
Max. power
4.6 kg
Lightweight
120 N.m
Maximum torque
1000 W
Max. power
4.6kg
Lightweight
120 N.m
Maximum torque
The Force in Compact Format
Whether you’re carrying heavy loads, tackling technical trails or climbing dizzying slopes, this powerful pedal motor is your best ally. With its 110 Nm of torque, it transforms every pedal stroke into an irresistible rush. In Boost mode, it delivers a maximum torque of 120 Nm for 120 seconds (reusable after 8 minutes’ rest) and an instantaneous power of 1000 W approved for use on public roads – exclusive to Syklo – to tame the most demanding terrain.
Intelligent Assistance
Discover the pleasure of a perfectly synchronized ride between you and the engine. Thanks to its ultra-precise, responsive torque sensor, the TSDZ8 responds immediately to your effort and adjusts assistance for a smooth, natural feel, making hill starts easier, while saving energy and preserving your battery’s autonomy.
Built to last
Thanks to its larger gearing and integrated magnet, this motor exceeds the standards set by previous generations, offering exceptional robustness. Its silent design and advanced heat dissipation greatly reduce the need for maintenance, while ensuring reliability in all terrains, from everyday city life to long mountain hikes.

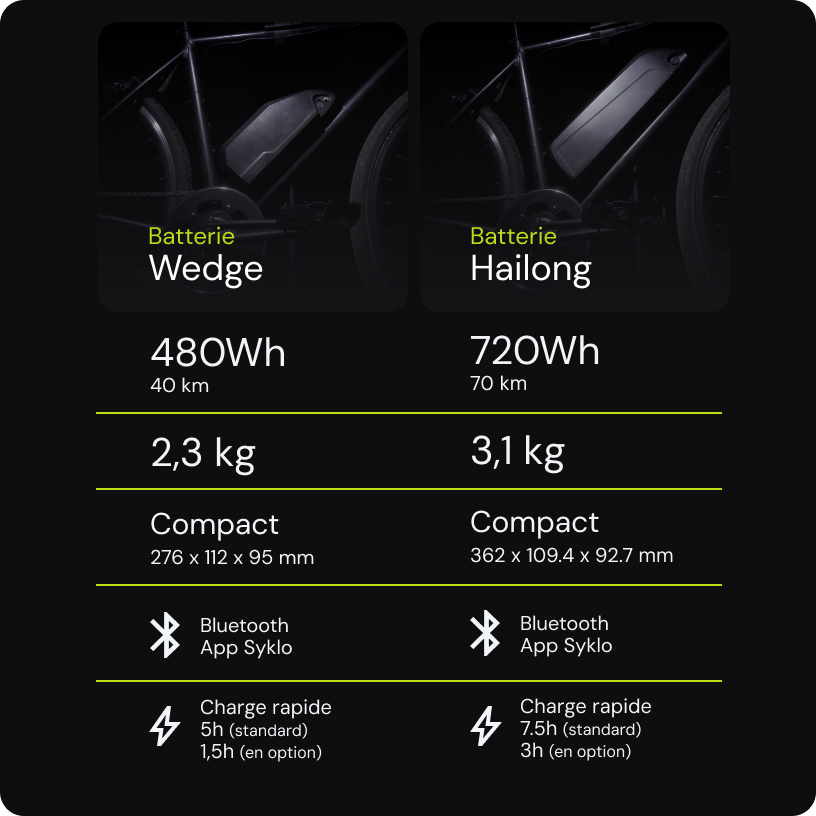

2 types of remarkably powerful battery.
The PowerTrail Z8 kit offers two battery options: 480 Wh or 720 Wh. Lightweight and compact, they can be adapted to suit every cyclist: the 480 Wh version is suitable for daily commutes and moderate outings, while the 720 Wh provides more autonomy for longer rides or carrying heavy loads. Thanks to latest-generation 21700 cells (Samsung), they offer an optimized energy reserve and longevity of up to 1000 cycles, all without weighing down your bike.
Wedge 480Wh 48V
480 Wh
Capacity
2.3 kg
Lightweight
5 /1,5 h
Ultra-fast charging
Hailong G70 720Wh 48V
720 Wh
Capacity
3.1 kg
Lightweight
8 h / 3 h
Ultra-fast charging
Intelligent management for enhanced reliability
Both batteries feature a top-of-the-range communicating BMS and a robust IP64-rated casing, guaranteeing superior resistance to water and dust. You can monitor the status of your battery in real time via the dedicated application, prolonging its life and minimizing maintenance. Safety is further enhanced by the integration of a fuse at cell level, obtained by laser-cutting our pure nickel strips, guaranteeing stable performance and trouble-free use.
Ultra-fast charger (optional)
The 6A charger accelerates recharging by delivering 3x the speed of a standard charger. Its partial charge technology makes it possible to reach 90% of capacity, multiplying battery life by 4, and to opt for a 50% charge to facilitate storage. All this is orchestrated by an intelligent regulation system that preserves cell health for fast, safe recharging.
Standard charger (included)
2A
Amperes
550 gr
lighter
100%
Total load only
Quick charger (optional)
6A
Amperes
3x
faster
50%/90%
Partial load
Quick charger (optional)
Quick charger (optional)
Minimalist Screen, Maximum Visibility
With its compact, unobtrusive design, the Sykloc Display gives you intuitive control without cluttering up your handlebars. Its clear display lets you monitor your speed, range and assistance mode in real time, even in bright sunlight.
Compact
22mm wide
Connected
Bluetooth
Solid
IP 65
Control your assistance in a single gesture
Change assistance mode from an ergonomic, resistant display (IP65). Thanks to the firmware developed by Syklo, you benefit from complete control of your kit: motor power, average and instantaneous consumption (Wh/km), and a precise estimate of the battery percentage are displayed in real time, all accompanied by an integrated speed limiter for added safety. This display, designed to adapt to all types of bikes, offers an intuitive and complete user experience in all conditions.
NEW
The SykloConnect application
Customize your motor and battery parameters
Real-time dashboard
Monitor speed, range and fuel consumption at a glance, so you can stay in control at all times.
Monitoring battery health
Visualize your battery’s condition with precise indicators and automatic alerts, for long-lasting performance.
Tracking routes and performance
Consult your trip history, analyze your fuel consumption and optimize your range.
Integrated safety and intelligent diagnostics
Detect anomalies, check battery lock status via an anti-theft system and update your screen with a single click.
NEW
The Syklo 2.0 application
Customize your motor and battery parameters
Real-time dashboard
Monitor speed, range and fuel consumption at a glance, so you can stay in control at all times.
Monitoring battery health
Visualize your battery’s condition with precise indicators and automatic alerts, for long-lasting performance.
Tracking routes and performance
Consult your trip history, analyze your fuel consumption and optimize your range.
Integrated safety and intelligent diagnostics
Detect anomalies, check battery lock status via an anti-theft system and update your screen with a single click.
Why choose Syklo?
Responsive FRENCH after-sales service
Availability and response within 24 hours
Torque sensor
Natural sensations and optimal engagement
Certified firmware
VAE-compliant software
Top-of-the-range batteries
Certified cells and enhanced safety
Intelligent Display
Instant, intelligent assistance control
Real-time application
Instant monitoring of performance and diagnostics
Other
More than 150 partners to install your electric kit!
Before installing an electrification kit, our partner store will assess the condition of your bike to ensure its compatibility with the kit. We would like to emphasize that safety is our top priority.
We answer all your questions
Don’t hesitate to contact our bicycle electrics specialists if you have any doubts.
- Write to us
- Make an appointment
Our syklists' opinions
FAQ
What are the advantages of this kit over other Bafang BBS-type pedal motors?
The kit with the TSDZ8 motor offers several distinct advantages over the Bafang BBS02. First and foremost, the TSDZ8 is designed to offer significantly more torque, with 110Nm compared to the BBS02’s 80Nm, which translates into better responsiveness and performance, particularly when climbing or on difficult terrain.
In addition, the TSDZ8 incorporates a high-precision torque sensor that adjusts assistance more finely and progressively according to the force exerted on the pedals. This feature ensures a more natural and intuitive riding experience than with the BBS02, which relies more on a rotation sensor to regulate assistance.
What’s more, the TSDZ8 benefits from improved heat management thanks to a design that facilitates heat dissipation, increasing its durability and resistance to prolonged use or demanding conditions. This robustness is enhanced by strong internal components and a larger gearbox, improving the longevity of the motor as a whole.
If you’re looking for a bike electrification system that combines high-performance assistance, advanced technologies and optimized ergonomics for the most enjoyable riding experience, the TSDZ8 kit is a great alternative to the Bafang BBS02.
If you have any further questions about installation, performance or choosing the kit best suited to your needs, our Syklo team will be happy to assist you.
Is the electrification kit easy or complicated to assemble?
The TSDZ8 motor kit has been designed to simplify installation, similar to the TSDZ2(see our tutorial here), on a wide range of bicycles with standard bottom brackets (BSA or JIS). However, depending on the specifics of your frame and the equipment already on your bike, certain adaptations may be necessary. We invite you to consult our compatibility manual , available here. 👍
For those who feel less at ease with bike mechanics, it’s a good idea to call in a specialist. If you choose to buy a kit via Syklo, ask us for a list of partner workshops ready to help you in this process.
Why a torque sensor motor?
The torque sensor analyzes the pressure applied by the rider on the pedals and adapts the electric assistance provided in real time. This type of sensor, renowned for its finesse, offers a more natural and efficient response than cadence or motion sensors(found in kits such as the Bafang BBS). Sensor accuracy may vary according to design and production, but the TSDZ8 kit is renowned for its high precision. Take care not to exert any pressure on the pedals during initial start-up (1 to 2 seconds) to ensure correct sensor calibration.
If you have the slightest doubt about your ability to install the kit correctly, the help of a specialist is recommended. When you buy your kit from Syklo, don’t hesitate to ask us for a list of partner workshops qualified to install it.
How heavy is the battery and how long does it last before needing to be recharged?
Battery weight varies according to the capacity selected, with the 840Wh model weighing in at 4.1 kg. Autonomy is influenced not only by battery capacity, but also by the level of assistance you choose when riding, and usually ranges from 30 to over 100 km per charge. The average consumption of an electrically assisted bicycle (EAB) is estimated at around 7Wh/km. However, thanks to the torque sensor, your energy consumption is optimized, enabling you to make significant savings, easily reducing your energy consumption by 20% compared with a Bafang BBS02, for example.
How fast can my TSDZ8 electrified bike go?
The top speed achievable with the kit is around 45 km/h. However, depending on your bike’s rear cassette, the type of bike (MTB, VTC, Cargo, Gravel) and the size of the chainring mounted on the TSDZ8, you may be able to reach higher speeds…
What accessories are included with the conversion kit and what tools do I need to assemble my bottom bracket motor kit?
The TSDZ8 kit comes with the motor, battery, charger and display of your choice. Your kit also includes all the components you need to assemble it: screws, cables, cranks, clamps and a special wrench for the main nut. However, to ensure proper assembly, you will need the following additional tools:
- Allen key sets (2.5 mm / 3 mm / 4 mm / 5 mm / 6 mm),
- Phillips and flathead screwdrivers,
- Torque wrench (optional),
- Crank puller (available from any bike/sports store),
- Bottom bracket disassembly wrench for your model (available from any bike/sports store),
- Cutting pliers,
- Net brake (available from DIY stores),
- A few extra clamps
Is my bike's electric conversion reversible? Can I remove the kit if necessary?
Yes, the electric conversion of your bike is reversible and the kit can be removed if necessary to go on another bike. That’s the beauty of investing in a kit that can easily grow with your needs.
What is the warranty on the conversion kit?
Our bicycle electrification kit is guaranteed for 24 months from the date of purchase, provided it is used in accordance with the legal power and speed regulations. To prolong the life of your kit and avoid any problems, we recommend that you follow the recommended instructions for use, such as storing it away from humidity, using it at temperatures between -10°C and 40°C, charging the battery regularly, and avoiding use in extreme conditions. In the event of a problem covered by the warranty, our after-sales service will be happy to help you find a quick and efficient solution. For more details, see our terms and conditions here
Is the battery removable and can it be recharged off the bike?
Yes, the battery is removable and can be recharged away from the bike. We recommend using the charger supplied with the kit to ensure optimum charging. To prolong the life of your battery, charge it after each use and store it at a temperature between 10 and 20°C. Avoid letting the battery discharge completely before recharging, as this can damage the cells. Remember to recharge your battery at least once a month, and never store it flat.
Are there any restrictions on the use of the conversion kit in terms of weight or type of terrain?
The electric motor kit is designed to be used with a maximum load of 150 kg on flat ground, however it is important to check that your bike can support such a load, and to check the bike manufacturer’s specifications for expected weight limits (usually between 100 and 150 kg). The kit can be used on most terrains, but care must be taken on very steep or uneven ground to avoid overheating the motor and battery.
